An inline centrifugal extractor fan is one of the most efficient and space saving ventilation solutions used in industrial and commercial buildings across the UAE. Unlike wall or ceiling mounted fans, this type of fan is installed directly inside a duct run. This means it sits out of sight while moving large volumes of air quietly and effectively. It is widely used in factories, warehouses, commercial kitchens, car parks, and office buildings where continuous air extraction is needed. For facility managers and engineers looking for a reliable, low profile option, this fan delivers consistent performance. It does all this without taking up valuable floor or wall space.

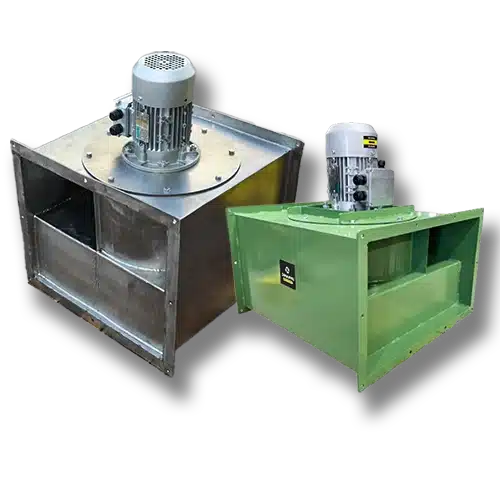

What Is an Inline Centrifugal Extractor Fan

This type of fan is a motorized unit designed to be mounted within a duct rather than at the end of it. The fan draws air in through one side and pushes it out through the other. It does this using centrifugal force generated by a rotating impeller. The impeller spins at high speed and flings air outward toward the duct walls. Pressure builds up, driving airflow along the duct run efficiently.

Because the motor and impeller are housed inside a casing that fits directly into the duct, the unit remains hidden from view. This suits installations where aesthetics matter, such as offices, hotels, and commercial spaces. Furthermore, the inline position allows the fan to serve long duct runs that a standard wall fan could not handle on its own.

The inline centrifugal exhaust fan variant works on the same principle but is specifically designed for exhaust applications. It removes stale, hot, or contaminated air from a space rather than supplying fresh air. Both variants are available in a range of sizes and motor capacities to suit different duct diameters and airflow requirements.

How Does an Inline Centrifugal Extractor Fan Work

The working principle of this fan relies on centrifugal force. When the motor starts, it spins the impeller at high revolutions per minute. Air enters the fan housing through the inlet and is caught by the rotating impeller blades. As a result, the air is flung outward and compressed against the scroll-shaped casing. This compression increases the air pressure, which drives it along the duct and out of the building. Unlike axial fans, which push air straight through in a linear direction, centrifugal fans build up pressure as they move air. Because centrifugal fans build up pressure as they move air, they are far more effective at overcoming resistance inside long or complex duct runs. Therefore, they are the preferred choice for ventilation systems where ductwork changes direction multiple times or covers large distances.

The motor is typically a single phase or three phase induction motor, depending on the fan size. Most units used in UAE industrial settings run on three phase power due to higher airflow demands. Additionally, many modern units come with variable speed drives. These allow the fan speed to be adjusted based on actual ventilation demand, saving energy during periods of low usage.

Where Is an Inline Centrifugal Extractor Fan Used in UAE

Industrial Factories and Warehouses

Industrial facilities across Dubai and the UAE use these fans to manage heat, humidity, and airborne contaminants generated by manufacturing processes. These fans connect to main duct runs that carry contaminated air from production areas to external exhaust points. Because they are installed inside the duct, they do not interfere with the working environment. They also avoid creating noise directly in the workspace.

In hot UAE summers, factory temperatures can rise significantly without proper extraction. An inline centrifugal exhaust fan installed at key points along a duct run helps maintain safe working temperatures. It also reduces the load on air conditioning systems. Consequently, facilities that use these fans often report lower cooling costs alongside better air quality.

Dust Collection and Extraction Systems

Dust collector dubai facilities and manufacturing plants rely on inline centrifugal extractor fans to drive air through dust collection ductwork. Grinding, cutting, and sanding operations produce fine particles that must be captured and removed continuously. These fans provide the sustained negative pressure needed to pull dust laden air from extraction hoods. They transport it to collection units without losing velocity along the way.

Furthermore, the centrifugal design handles dust laden airstreams better than axial fans. The impeller generates consistent pressure even when the air contains particulates. This makes it a more reliable choice for heavy duty extraction across UAE industrial sites.

Commercial Kitchens and Car Parks

Commercial kitchens in hotels, restaurants, and food processing facilities use these fans to remove cooking fumes, heat, and grease laden air. The fan sits within the kitchen exhaust duct and continuously draws contaminated air out of the cooking area. An inline centrifugal exhaust fan used in this application is often paired with grease filters to prevent buildup inside the ductwork.

Car parks in commercial and residential buildings also use these fans as part of their smoke and fume extraction systems. In the event of a fire or excessive vehicle fumes, the fans activate to clear the space rapidly. Because they are mounted within the duct rather than at ceiling level, they do not reduce the headroom available for vehicles.

Dynamic Ventilation: Leading Centrifugal Fan Supplier and Ventilation Expert in UAE

Centrifugal fan suppliers in uae vary widely in product quality and technical support. Dynamic Ventilation stands out as one of the most trusted names in the industry. As a leading manufacturer and ventilation fan supplier in UAE, the company supplies these fans built for UAE industrial and commercial projects. From factories and warehouses to commercial kitchens and car parks, Dynamic Ventilation has delivered proven ventilation solutions across Dubai and the wider UAE.

Every fan is selected based on the specific airflow, pressure, and duct diameter requirements of the project. Dynamic Ventilation’s engineering team works directly with contractors and facility managers to specify the right unit. In addition, the company provides full technical support and after sales service. This makes it a reliable long term partner for ventilation projects of any scale.

Choosing Dynamic Ventilation means access to products tested and proven under UAE conditions. The local team understands the region’s industrial ventilation demands and supports clients from specification through to installation.

Conclusion

An inline centrifugal extractor fan is a versatile and efficient ventilation solution that suits a wide range of industrial and commercial applications across the UAE. Its ability to handle long duct runs and maintain consistent pressure makes it a preferred choice for engineers and contractors. It operates quietly from within the duct, out of sight and out of the way. Moreover, its compact inline design means it can be installed in spaces where wall or ceiling mounted fans would not fit.

Reach Dynamic Ventilation on +971 561864701 to discuss which inline centrifugal extractor fan suits your project. Our team brings hands-on engineering experience built specifically for UAE conditions.
